Product Introduction: UJ Light TFT LCD BTU056

UJ Light proudly presents the new TFT LCD BTU056, an ideal replacement for the 5.7” monochrome LCD BG320240F/F2/G series. Here are the core features of the BTU056:

1. Same Mechanical Dimensions: Perfectly compatible with the BG320240F/F2/G, eliminating installation concerns.
2. High Resolution Display: Resolution upgraded to 648x480, providing more detailed and clearer visuals compared to the original monochrome 320x240 display.
3. Rich Color Display: Supports both monochrome and color displays, offering more vibrant and diverse screen effects.
4. Fast Refresh Rate: Displays are smoother with no ghosting, enhancing the user experience.
5. No Cross Talk Issues: Clear display without interference or ghosting.
6. Simplified Programming: Features a UART (TX/RX) transmission interface to streamline the programming process.
7. PC UI Editor Support: Includes an editing tool that facilitates quick and convenient screen layout arrangements.
8. PC Simulator Functionality: Allows you to simulate display effects on a PC before programming, offering greater flexibility.
9. Affordable Pricing: Maintains a similar price to the original product, providing higher cost performance.

UJ Light TFT LCD BTU056 not only enhances display quality but also optimizes your development process. Experience the advantages of this high-performance display and make your products stand out!

Product Comparison Chart

TFT LCD vs Monochrome LCD

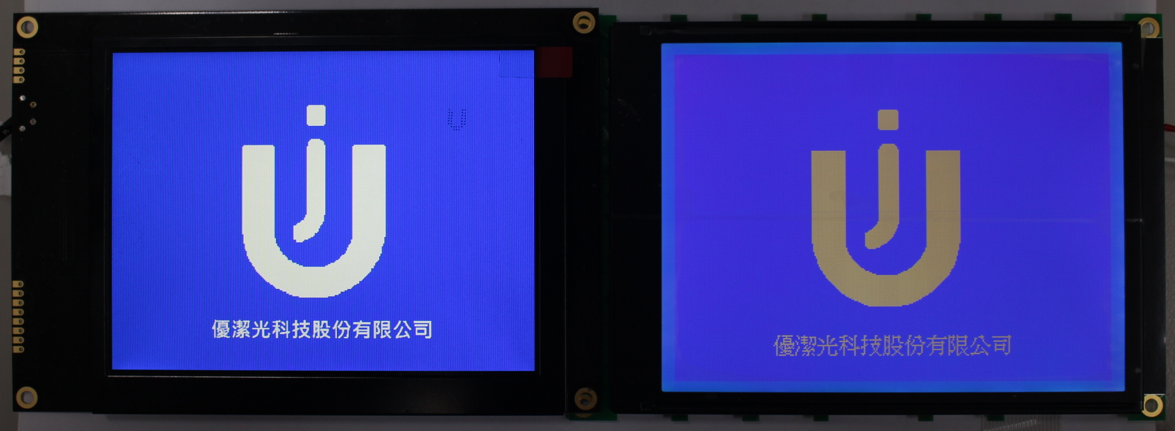

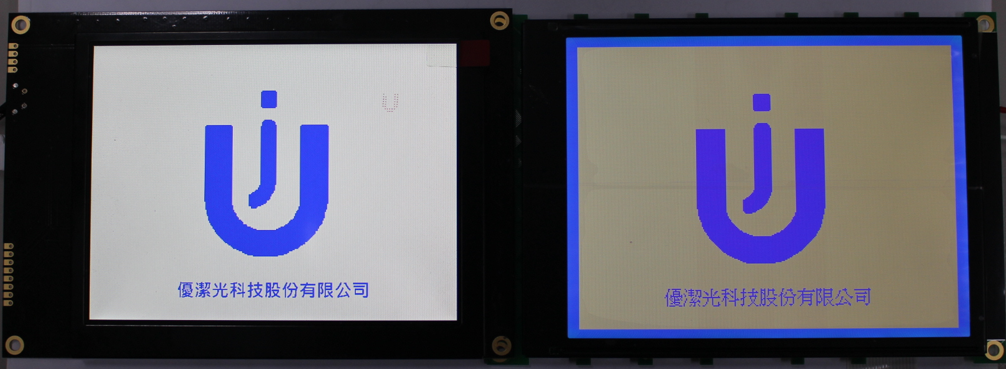

TFT LCD vs Monochrome LCD with a White Background and Blue Text

Monochrome has LCD Crosstalk

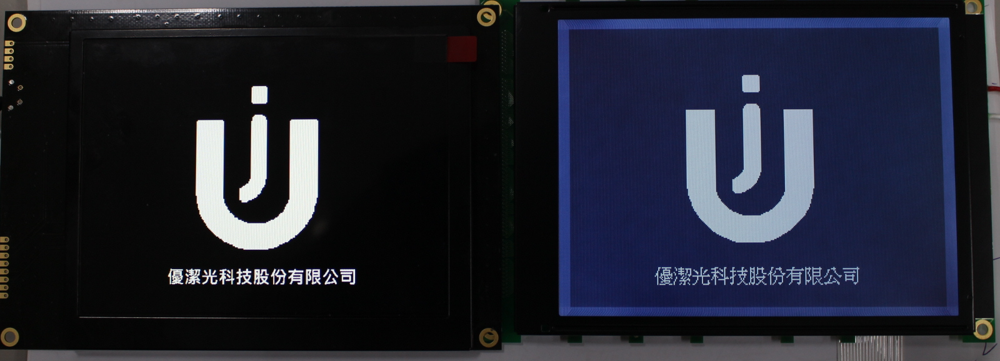

TFT LCD vs Monochrome LCD with a Black background with white text

TFT has strong black-and-white contrast, while the monochrome LCD's background is not black enough

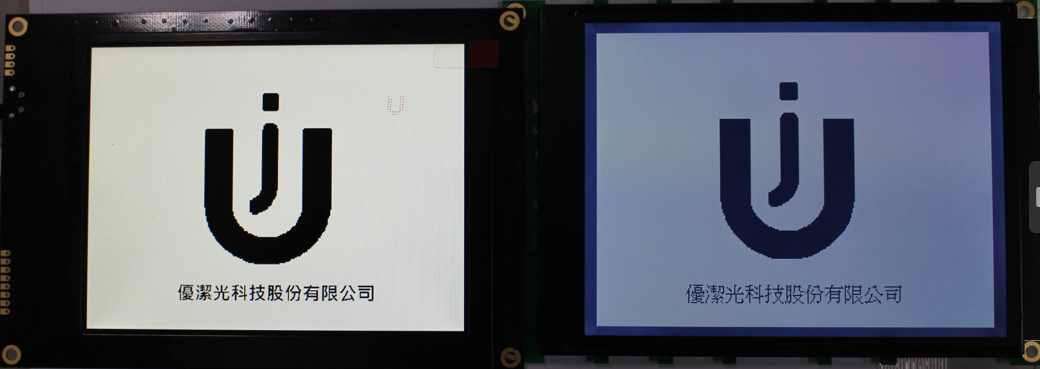

TFT LCD vs Monochrome LCD with a white background with white black text

TFT has strong black-and-white contrast, while the monochrome LCD's background is not white enough

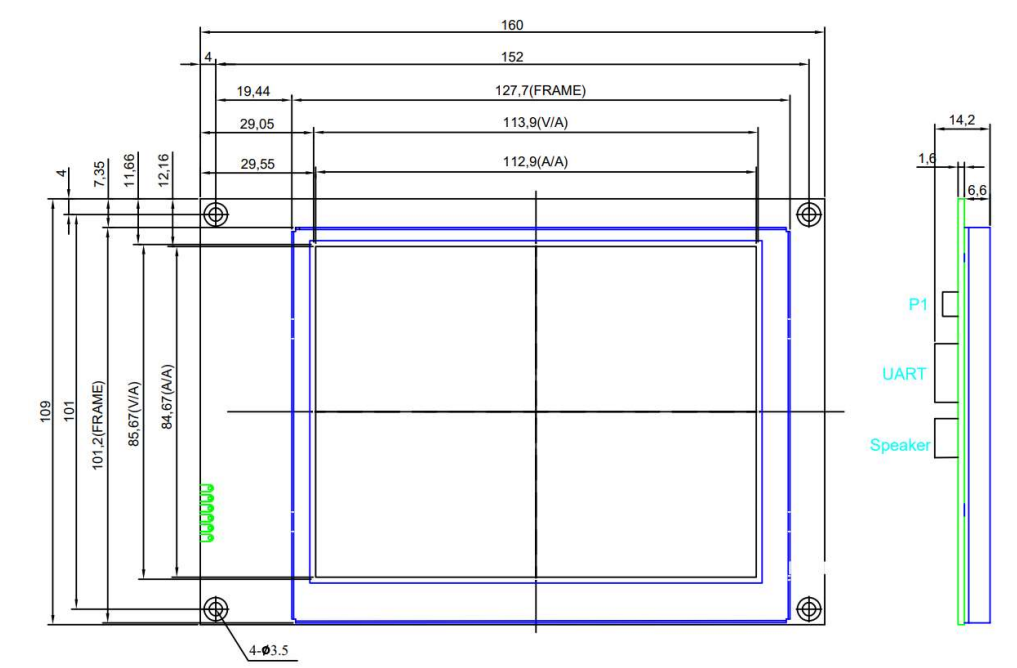

TFT LCD dimensional drawing:
