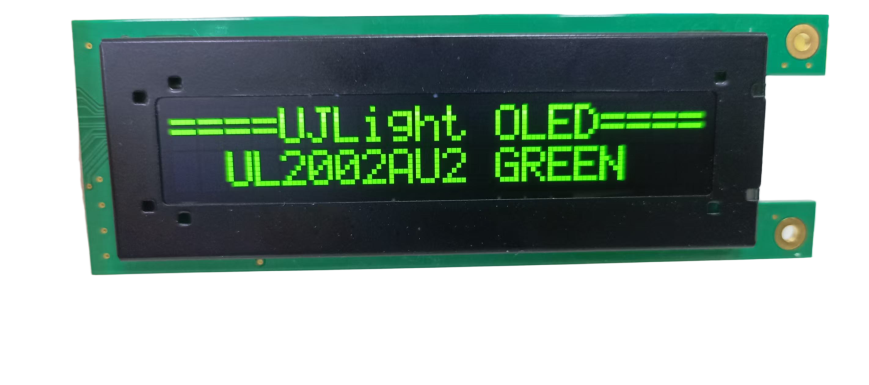

UL2002AU2  CHARACTER  OLED  Display

Dear Valued Customer,

We are proud to introduce UJ Light’s advanced 20×2  Character  OLED  Display  which built-in font table, software and hardware compatible with STN LCD.

Specifications

• Resolution: 20 character × 2 line
• Display Size: 116 × 37 mm
• Color Depth: Green colors
• Controller IC: Built-in controller
• Power Supply:  +5 V
• Interface: Parallel(80,68 series) / SPI/ I2C

Key Features

·         Pinout and Size - same as UJLight LCD item no.BC2002A

https://www.ujlight.com.tw/20x2-character-lcd-display-bc2002a.html

·         High-Contrast ratio –10000:1

·         Wide Viewing Angle –All view angle

·         Fast Response Time – Smooth and seamless image transitions

·         Excellent Durability – Supports wide operating temperature range (-40 °C to +80 °C)

·         Built-in font- ASCII, English, Russian, European, and Japanese character

Applications

• Industrial Applications: Test instruments, various meters, voltage measuring equipment
• Medical Devices: Glucose meters, blood pressure monitors, and other precision sensing devices

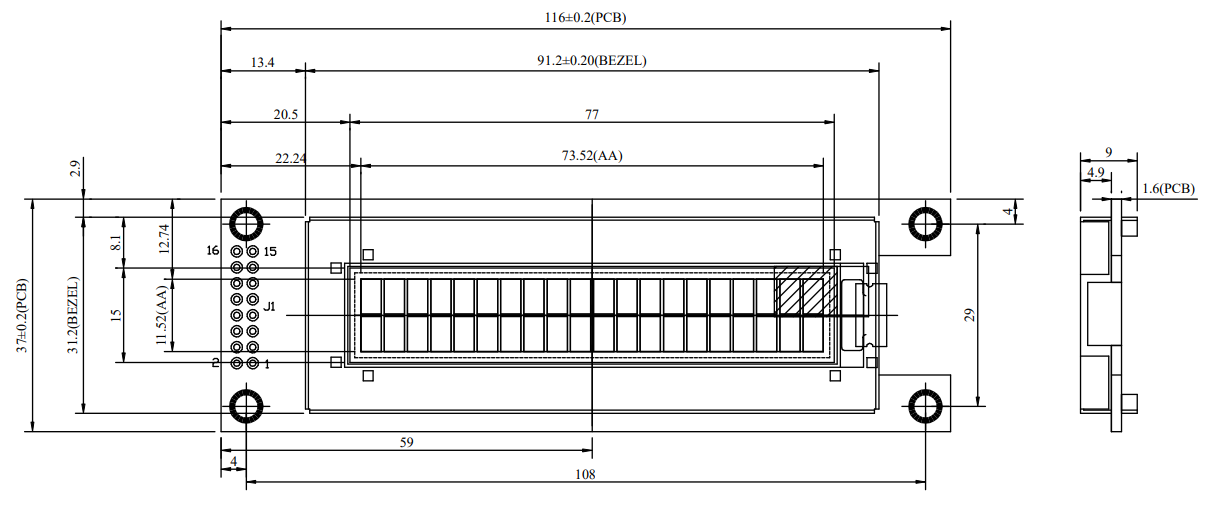

Drawing
