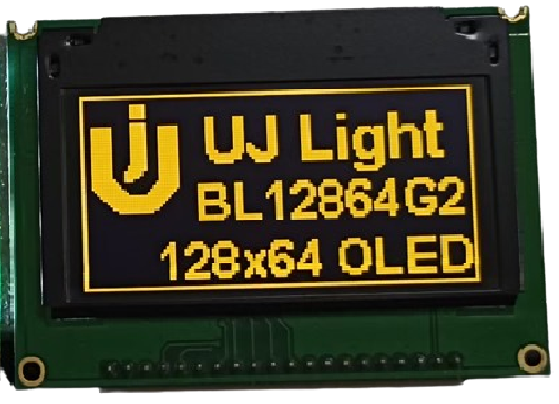

BL12864G2  GRAPHIC  OLED  Display

Dear Valued Customer,

  We are proud to introduce UJ Light’s advanced 128x64  Graphic  OLED  Display  which built-in Oled control IC and size same as STN LCD BG12864E.

   Specifications

• Resolution: 128 × 64 dot
• Display Size: 75 × 52.7 mm
• Color Depth: Yellow colors
• Controller IC: Built-in controller
• Power Supply:  +5 V
• Interface: Parallel 6800

    Key Features

·         Pinout and Size   – same as UJLight LCD item no.BG12864E

·         High-Contrast ratio –10000:1

·         Wide Viewing Angle –All view angle

·         Fast Response Time – Smooth and seamless image transitions

·         Excellent Durability – Supports wide operating temperature range (-40 °C to +80 °C)

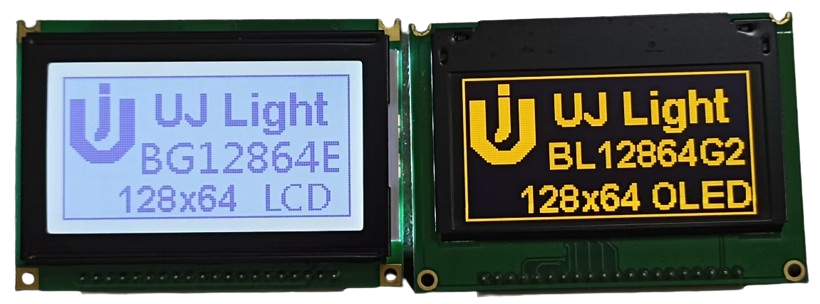

Comparison of STN BG12864E  and  OLED BL12864G2

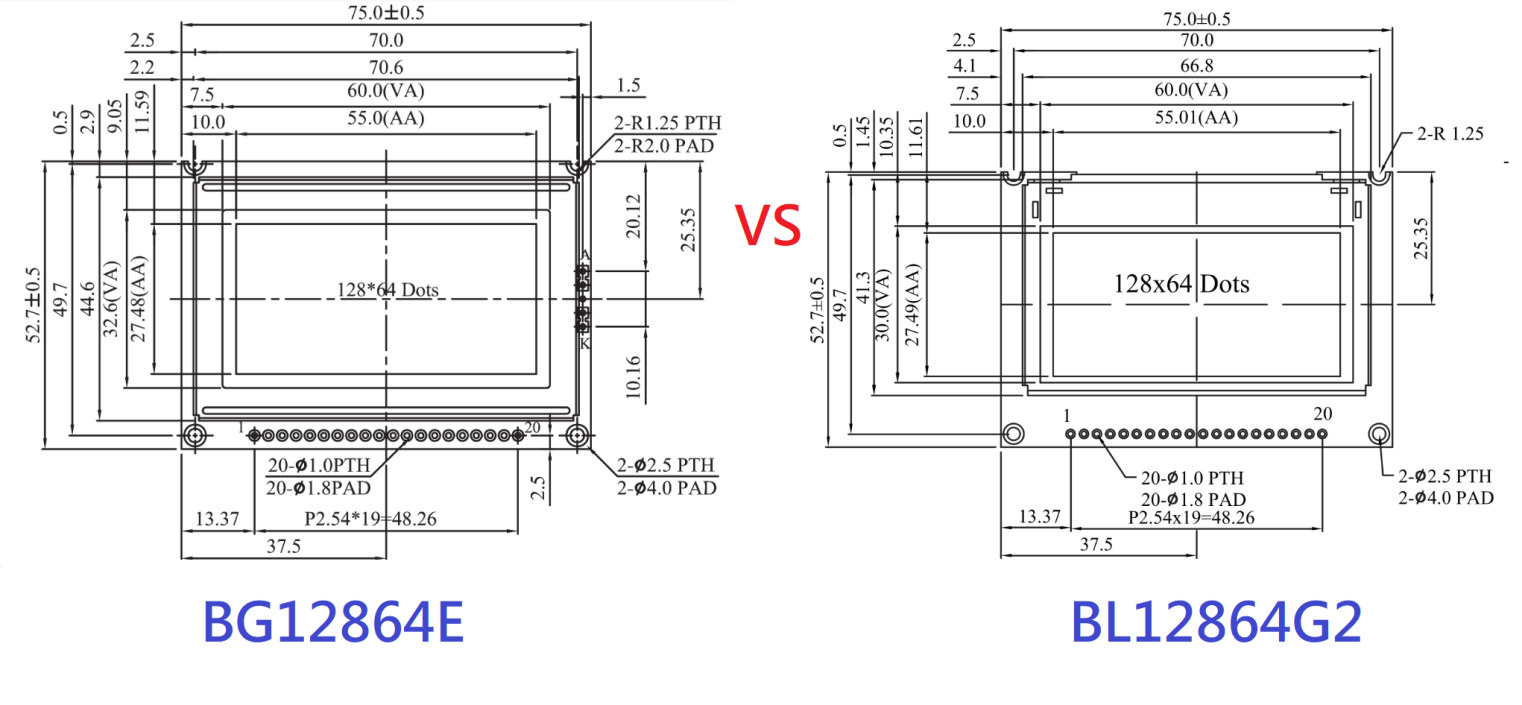

1.    SIZE:  Same size

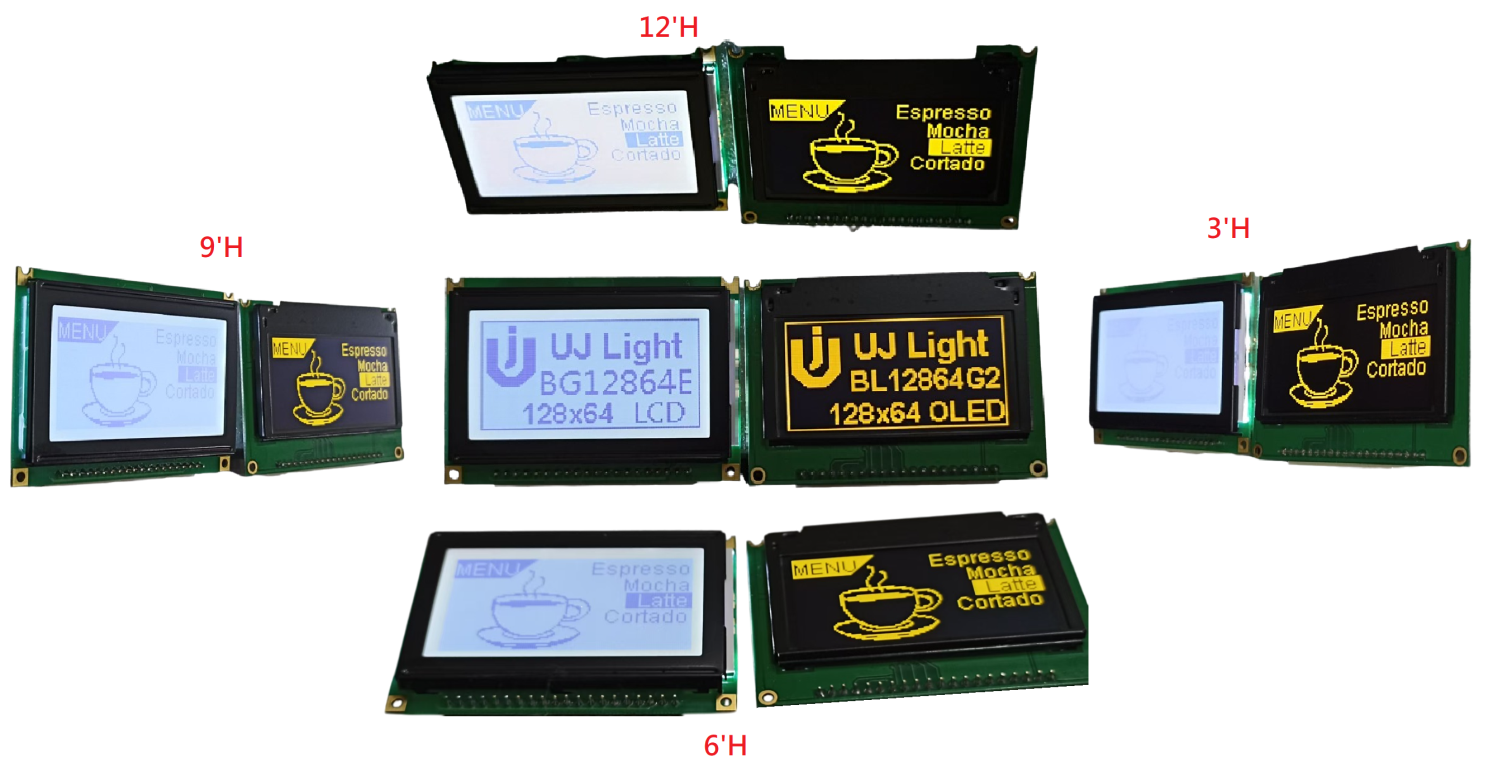

2.    Comparison of View Angle:

        OLED offers advantages such as high contrast and wide viewing angles compared to LCD.

Applications

• Industrial Applications: Test instruments, various meters, voltage measuring equipment
• Medical Devices: Glucose meters, blood pressure monitors, and other precision sensing devices
• Consumer : Coffee Machine, POS

Please contact us if you require further information.
