• 8x2 Character LCD, BC0802A

8x2 Character LCD display

●Character LCD 8x2
●COB with metal frame
●5*7 dots with cursor
●Built-in controller ST7066 or equivalent
●+5V single power supply
●1/16 duty cycle
●LED B/L pins: A/K, or 1/2, or 15/16
●Option: LED, EL B/L
Model : BC0802A


BC0802A

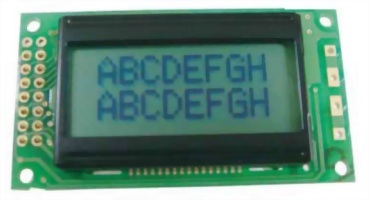

BC0802A is 8x2 characters LCD Module (LCM) made using Chip on Board (COB) method and comes with metal frame.

Module dimension of BC0802A is (58.0x32.0) mm and viewing area is (38.0x16.0) mm.

It has built-in controller ST7066 (or equivalent) that provides different language options, English, Japanese, Chinese, Western & Eastern European, Russian etc.

It is available without backlight or with LED, EL backlight options.

BC0802A LCD module is available in gray, yellow/green and blue LCD color.








● Mechanical Data

Item

Standard Value

Unit

Module Dimension

58.0 x 32.0

mm

Viewing Area

38.0 x 16.0

mm

Dot Size

 0.545 x 0.645

mm

Character Size

2.945 x 5.545

mm




● Pin Assignment

Pin

Symbol

Function

1

Vss

GND

2

Vdd

+5V (+3V option)

3

Vo

Contrast adjustment

4

RS

H/L register seclect signal

5

R/W

H/L read/write signal

6

E

H --> L enable signal

7~14

DB0~7

H/L data bus line

15

A

Power supply for B/L (+)

16

K

Power supply for B/L (GND)
