• 16x2 COG LCD Display Module, BO1602E

16x2 COG LCD Display Module

● COG LCD 16x2
● Character LCD
● COG package
● 5x7 dots with cursor
● Built-in controller ST7032i
● +3.3V single power supply
● 1/16 duty cycle
● I2C series interface
Model : BO1602E


BO1602E


BO1602E is 16x2 character COG (chip on glass) LCD Module with built-in ST7032i controller.

BO1602E 16x2 COG LCM it supports I2C series interface.

COG (chip on glass) is an LCD packaging technology where the controller is mounted directly onto the LCD glass and PCB is not required. COG makes LCD compact, consume less power and also bring down the cost.

It is recommend for compact applications

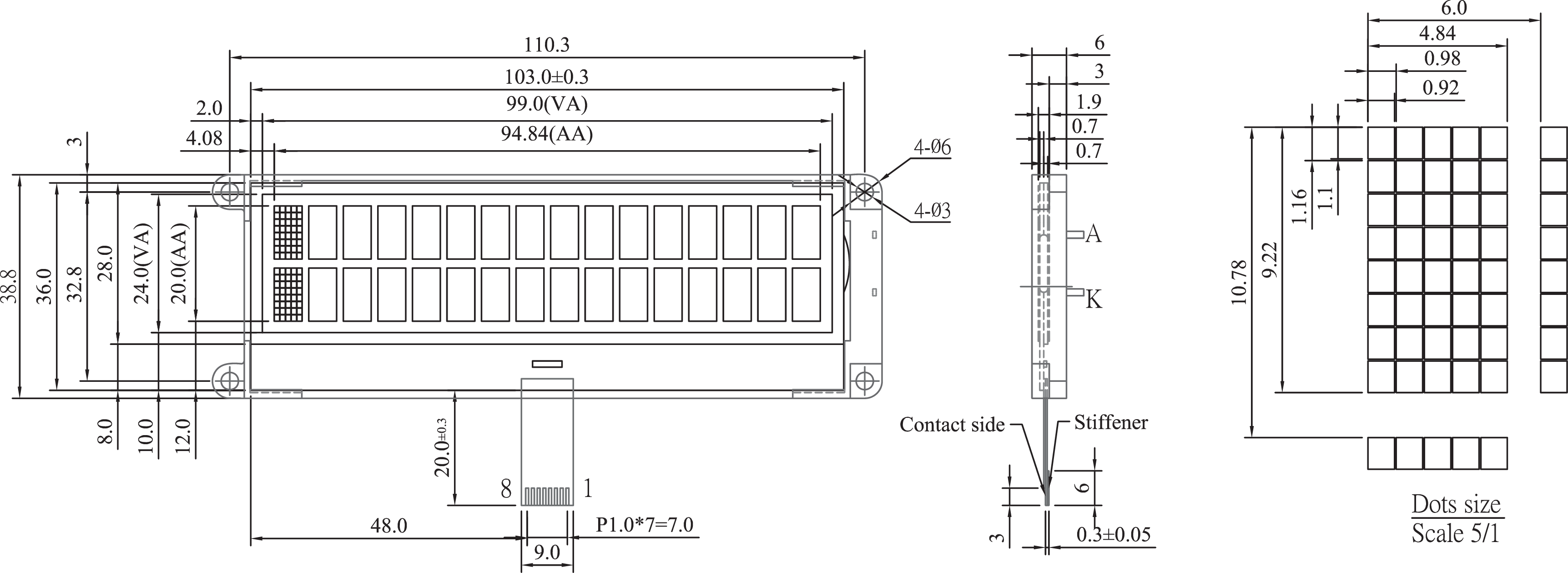

Module dimension of BO1602E is (103.0x36.0) mm and viewing area is (99.0x24.0) mm.








● Mechanical Data

Item

Standard Value

Unit

Module Dimension

103.0 x 36.0

mm

Viewing Area

99.0 x 24.0

mm

Dot Size

 0.92 x 1.10

mm

Dot Pitch

4.84 x 9.22

mm




● Pin Assignment

Pin

Symbol

Level

Function

1

VOUT

-

LCD driver voltage

2

CAP-

-

Voltage booster circuit

3

CAP+

-

 External capacitor about 0.1uf to 4.7 uf

4

VDD

-

Power supply for logic (+3.3V)

5

VSS

-

Power supply GND

6

SDA

H/L

Serial Data Input/Output

7

SCL

H/L

Serial clock input

8

RST

H/L

   Reset signal
