• 16x2 Character LCD, BC1602E

16x2 Character LCD display

● COB with metal frame
● 5x7 dots with cursor
● Built-in controller ST7066 or equivalent
● +5V single power supply
● 1/16 duty cycle
● LED B/L pins:15/16,or A/K or 1/2
● Option: LED array / EL B/L
● Option: +3V single power supply
● Option: Negative voltage
Model : BC1602E


BC1602E

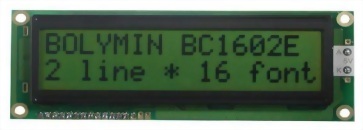

BC1602E is Big Font 16x2 characters LCD Module (LCM) made using Chip on Board (COB) method and comes with metal frame.

Character size is (4.84x9.66) mm.

Module dimension of BC1602E is (122.0x44.00) mm and viewing area is (99.0x24.0) mm.

It has built-in controller ST7066 (or equivalent) that provides different language options, English, Japanese, Chinese, Western & Eastern European, Russian etc.

It is available without backlight or with LED, EL backlight options.

BC1602E LCD module is available in gray, yellow/green and blue LCD color.

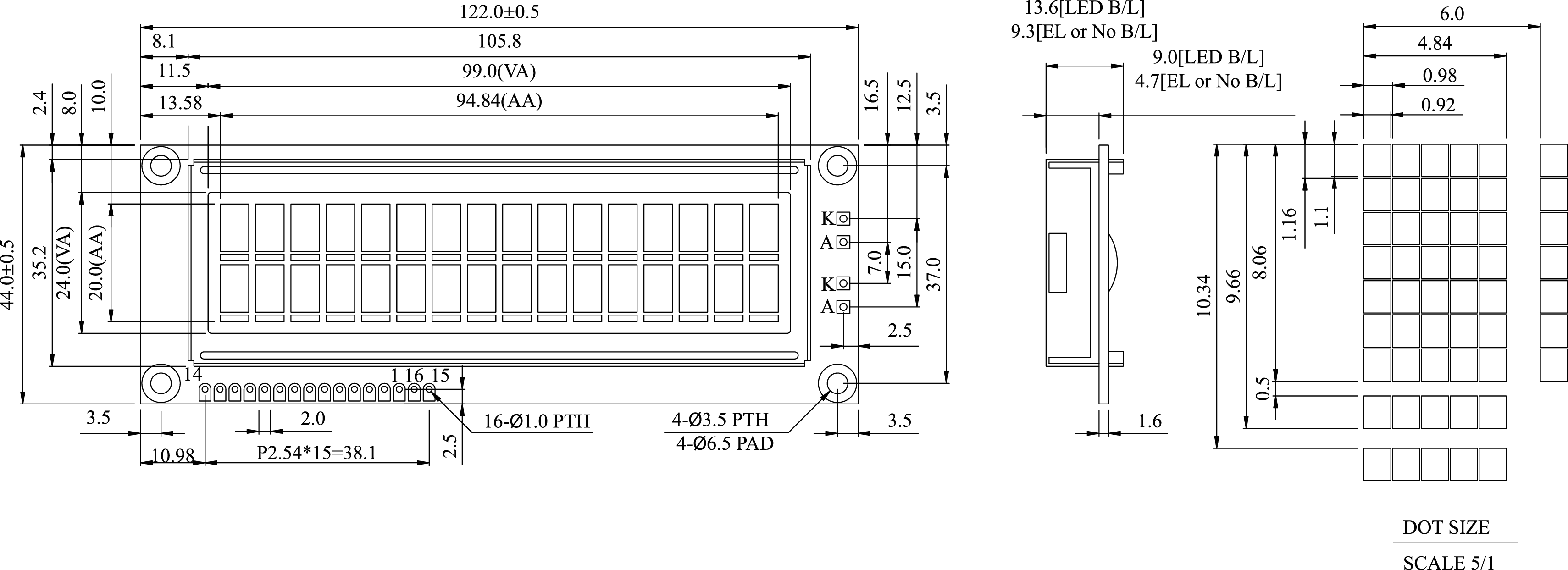

● Mechanical Data

Item

Standard Value

Unit

Module Dimension

122.0 x 44.0

mm

Viewing Area

99.0 x 24.0

mm

Dot Size

 0.92 x 1.10

mm

Character Size

4.84 x 9.66

mm




● Pin Assignment

Pin

Symbol

Function

1

Vss

GND

2

Vdd

+5V (+3V option)

3

Vo

Contrast adjustment

4

RS

H/L register select signal

5

R/W

H/L read/write signal

6

E

H>L enable signal

7~14

DB0~7

H/L data bus line

15

A/Vee

Power Supply for B/L(+)/Negative voltage output

16

K

Power supply for B/L (GND)
