• 16x2 Character LCD, BC1602K1

16x2 Character LCD display

● COB with metal frame
● 5x7 dots with cursor
● Built-in controller ST7066 or equivalent
● +5V single power supply
● 1/16 duty cycle
● Option: +3V single power supply
● Option: negative voltage built-in
Model : BC1602K1


BC1602K1

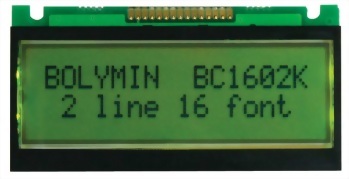

BC1602K1 is 16x2 characters LCD Module (LCM) made using Chip on Board (COB) method and comes with metal frame.

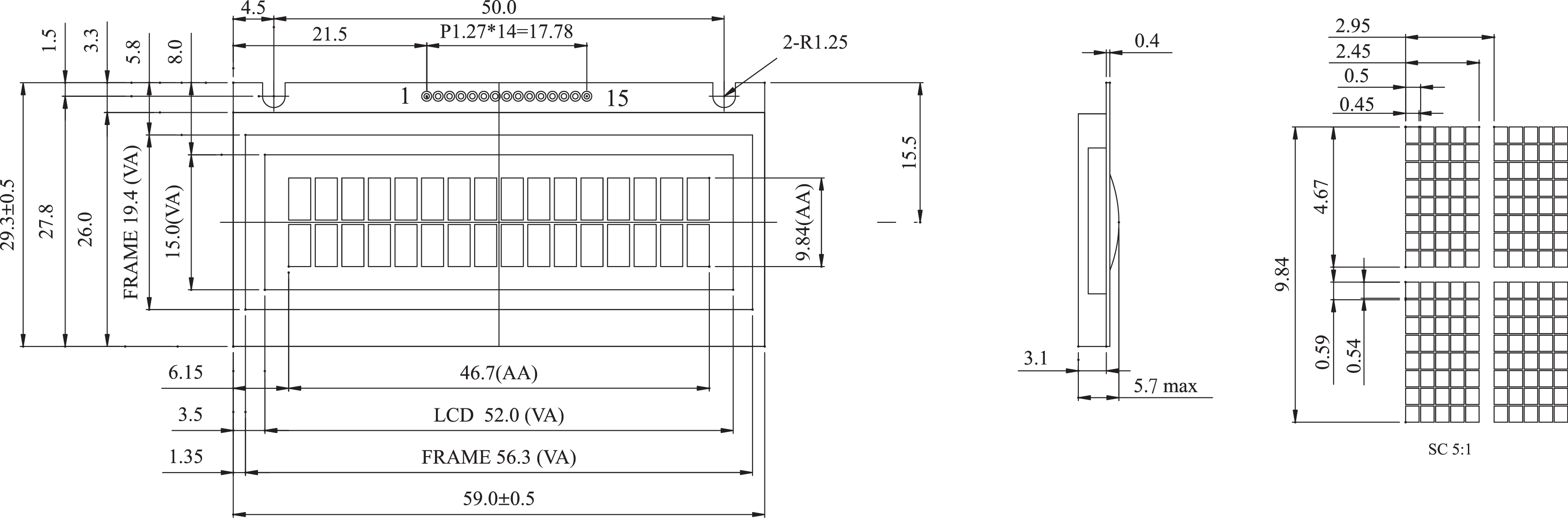

Module dimension of BC1602K1 is (59.0x29.3) mm and viewing area is (52.0x15.0) mm.

It has built-in controller ST7066 (or equivalent) that provides different language options, English, Japanese, Chinese, Western & Eastern European, Russian etc.

It is available without backlight or with LED, EL backlight options.

BC1602K1 LCD module is available in gray, yellow/green and blue LCD color.








● Mechanical Data

Item

Standard Value

Unit

Module Dimension

59.0 x 29.3

mm

Viewing Area

52.0 x 15.0

mm

Dot Size

 0.45 x 0.54

mm

Character Size

2.54 x 4.67

mm




● Pin Assignment

Pin

Symbol

Function

1

LED(-)

Power supply for B/L(-)

2

Vss

GND

3

Vdd

+5V

4

Vo

Contrast adjustment

5

RS

H/L register select signal

6

R/W

H/L read/write signal

7

E

H>L enable signal

8~15

DB0~7

H/L data bus line
