• 40x2 Character LCD display

40x2 Character LCD display

● COB with metal frame
● 5x7 dots with cursor
● Built-in controller ST7066 or equivalent
● +5V single power supply
● 1/16 duty cycle
● LED B/L pins:15/16,or A/K or 1/2
● Option: LED arrayB/L, EL B/L
● Option: +3V single power supply
● Option: Negative voltage
Model : BC4002A


BC4002A


BC4002A is 40x2 characters LCD Module (LCM) made using Chip on Board (COB) method and comes with metal frame.

Module dimension of BC4002A is (182x33.5) mm and viewing area is (154.4x16.5) mm.

It has built-in controller ST7066 (or equivalent) that provides different language options, English, Japanese, Chinese, Western & Eastern European, Russian etc.

It is available without backlight or with LED, EL backlight options.

BC4002A LCD module is available in gray, yellow/green and blue LCD color.

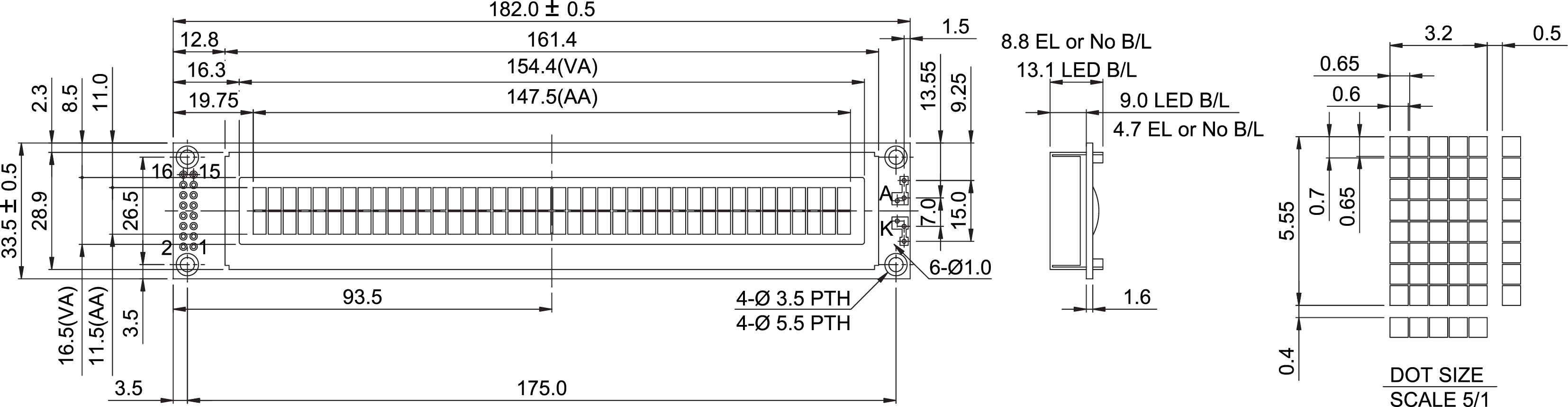

● Mechanical Data

Item

Standard Value

Unit

Module Dimension

182.0 x 33.5

mm

Viewing Area

154.4 x 16.5

mm

Dot Size

 0.6 x 0.65

mm

Character Size

3.2 x 5.55

mm

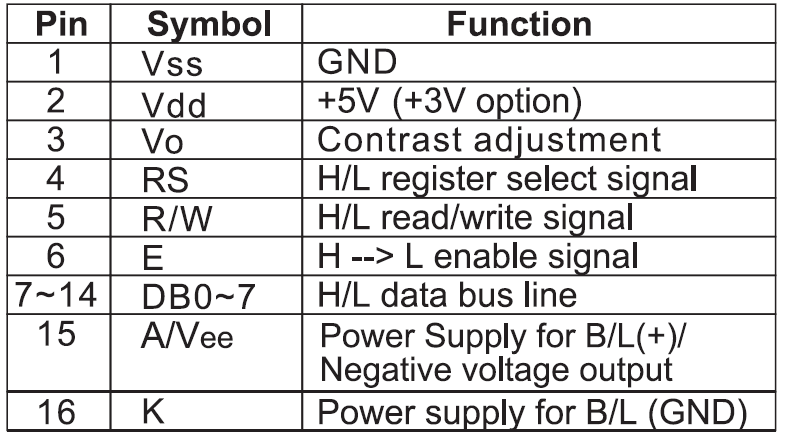

● Pin Assignment
